Bathymetry inverted
Marilyn Reish, modified 2 Years ago.
Bathymetry inverted
Youngling Post: 1 Join Date: 12/13/22 Recent Posts

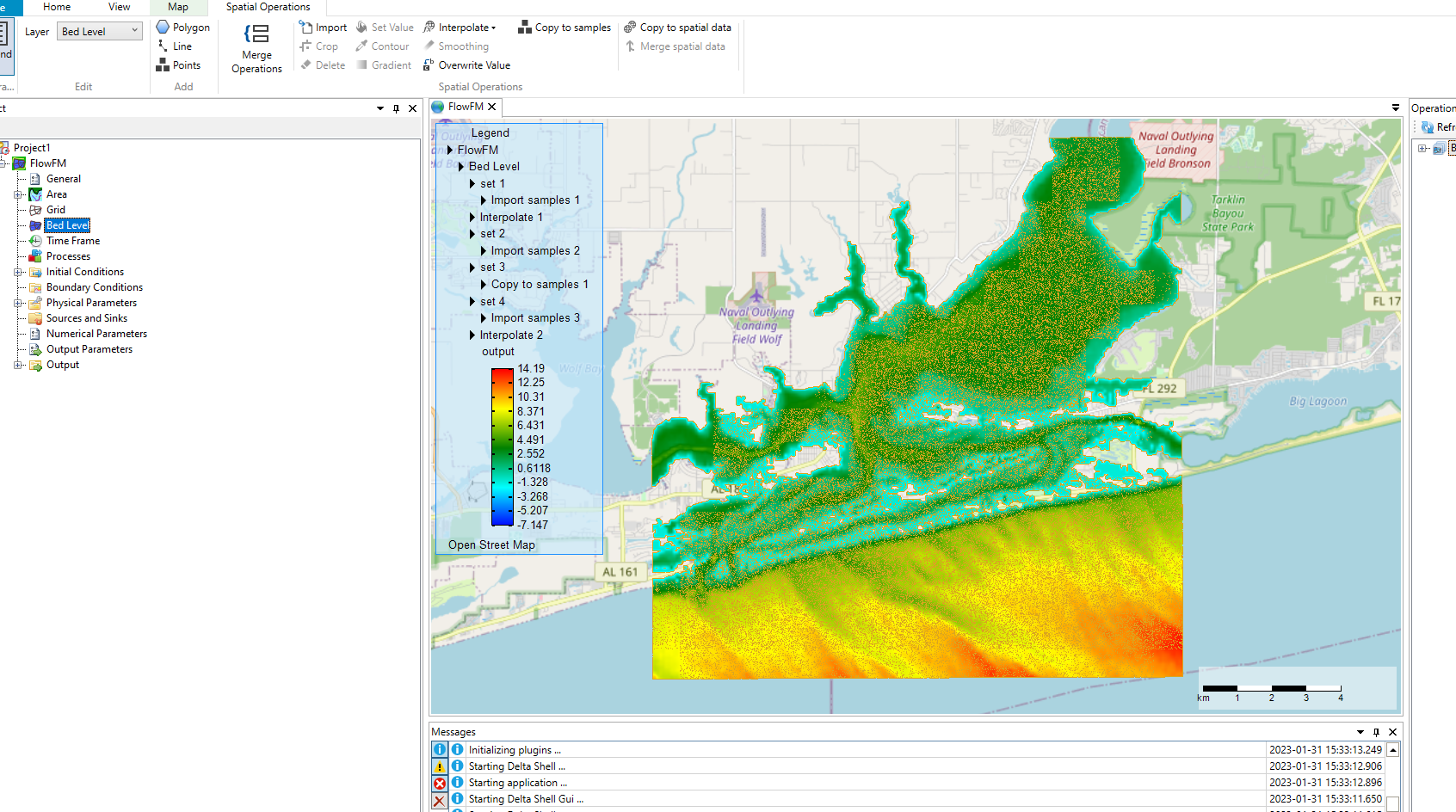

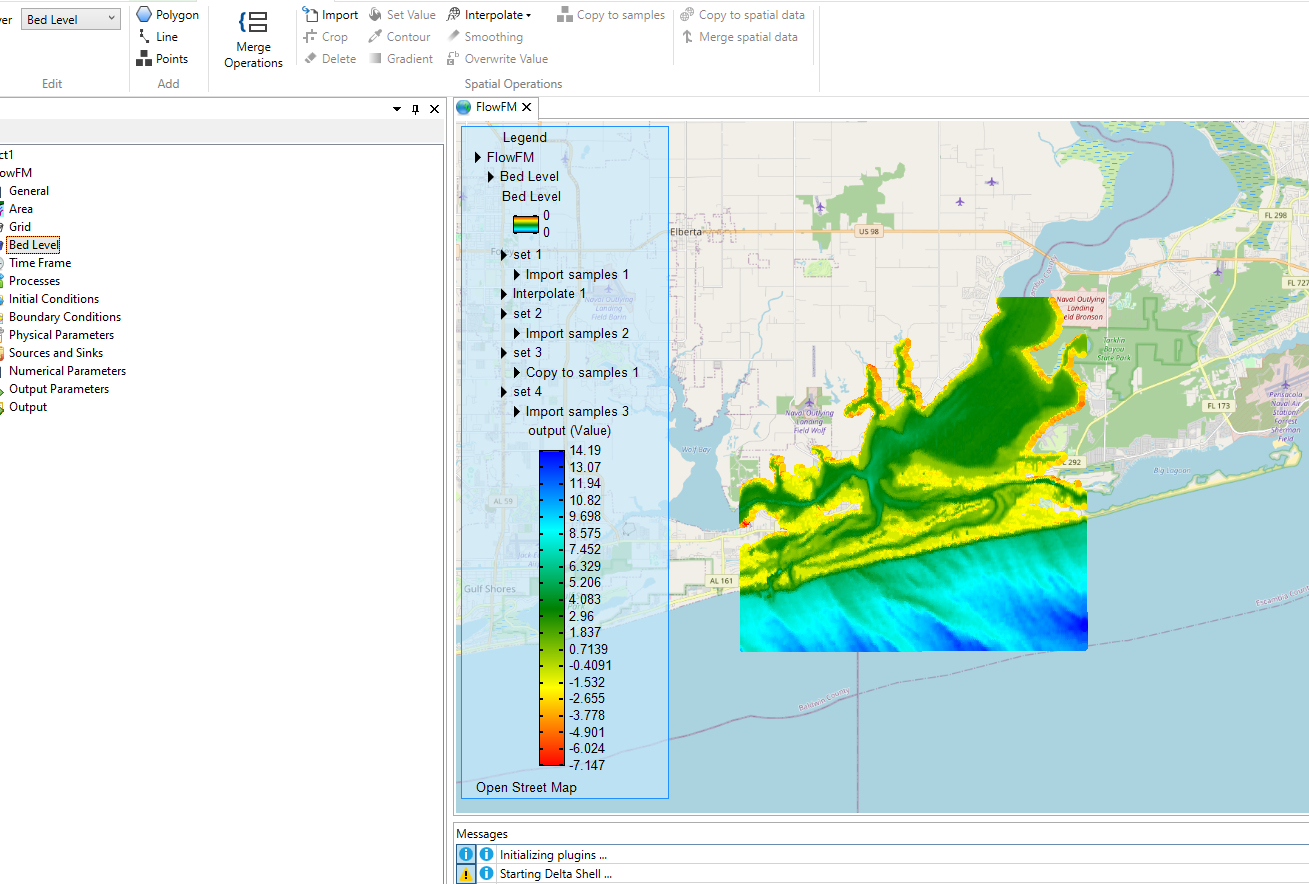

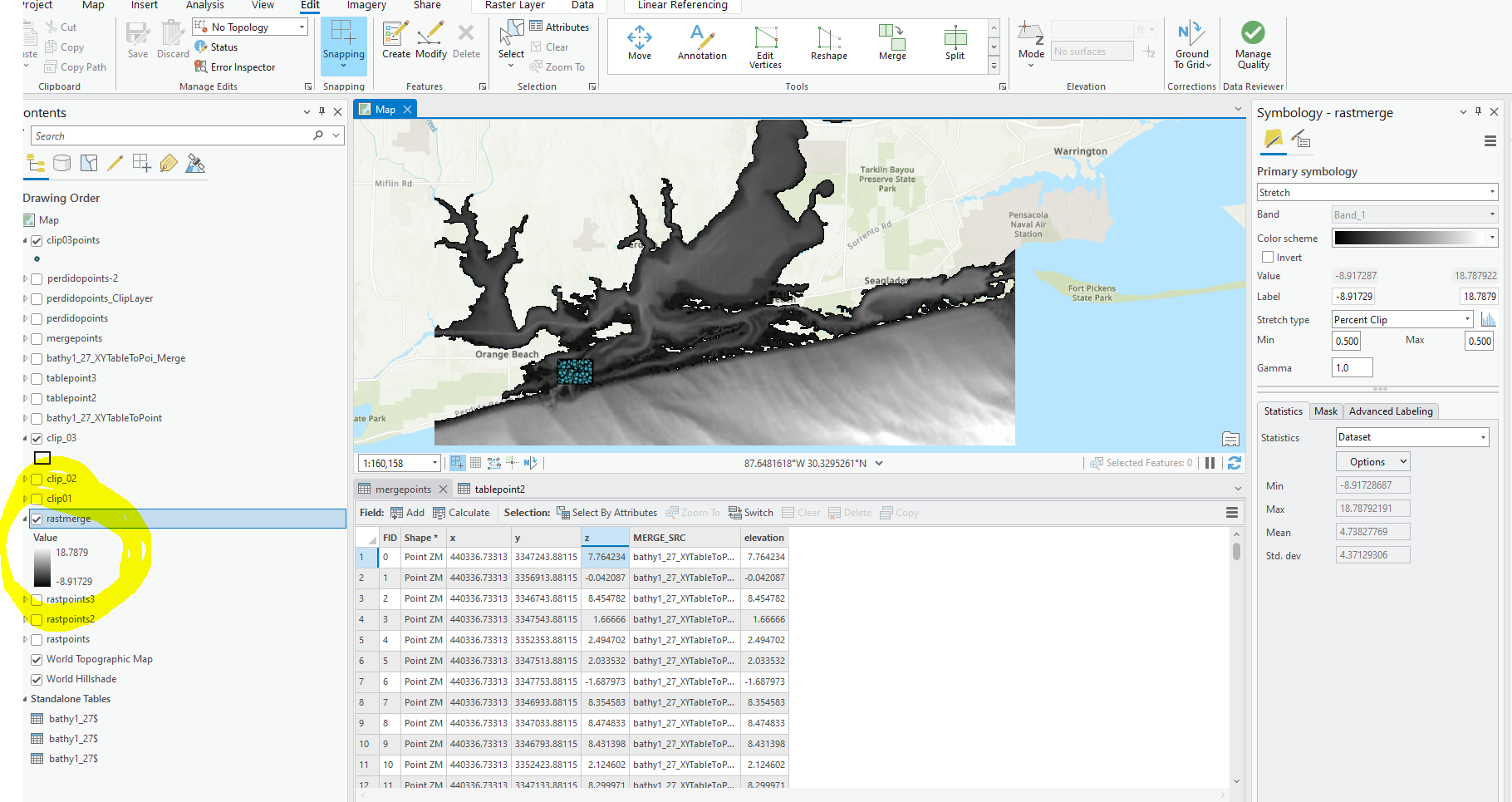

I brought bathymetry data into Delft Flow FM from Dashboard by converting the grid in FM Flow and then bringing the grid into Delft 3D and importing the bathymetry, and interpolating the bed level data onto the grid and exporting it to bring it into FM Flow. The bathymetry appears to be correct when I first import it into Delft 3D but then the values seem to flip. The edges of the grid (which are land) and should be the highest elevation are flipped to negative values. The bathymetry appears to be correct but with flipped values. Does anyone know why this might be occurring? I also have been bringing this bathymetry in to ArcPro in order to make a point cloud to hopefully re-shape the bedlevel to run simulations in Delft Flow FM but you can see that bringing in that bathymetry results in flipped values in ArcPro as well.
Munawir Pratama, modified 2 Years ago.
RE: Bathymetry inverted
Youngling Posts: 7 Join Date: 9/11/16 Recent Posts
Hi Marilyn,
I did not see any problem in your "after interpolation" data.
The flipped value actually had made the bathymetry in the correct convention for D-FLOW FM, since it assign the bathymetry value as ELEVATION where the "negatives are at the ocean."
Or please let me know if I misunderstood the problem.
Thank you - Munawir
I did not see any problem in your "after interpolation" data.
The flipped value actually had made the bathymetry in the correct convention for D-FLOW FM, since it assign the bathymetry value as ELEVATION where the "negatives are at the ocean."
Or please let me know if I misunderstood the problem.
Thank you - Munawir
